apple cleaning, fan drying, waxing, grading machine, apple sorting machine

China apple cleaning, fan drying, waxing, grading machine, apple sorting machine supplier

Large Image :  apple cleaning, fan drying, waxing, grading machine, apple sorting machine

Product Details:

Place of Origin: china
Brand Name: fude
Model Number: 6 grades

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: $10000-20000/set
Packaging Details: non fumigation export standard wooden case.
Delivery Time: 25-30days
Payment Terms: T/T, L/C, D/P, D/A
Supply Ability: 10pcs/m
Contact Now
Detailed Product Description
Suitable For: Apple, Orange, Lemon Material: Inner Board Stainless Steel
Capacity: 3t/h

apple cleaning, fan drying, waxing, grading machine, apple sorting machine

orange  cleaning, fan drying, waxing, grading machine, orange sorting machine

lemon  cleaning, fan drying, waxing, grading machine, lemon sorting machine

apple cleaning, fan drying, waxing, grading machine, apple sorting machine

This equipment outer material is carbon steel +paint, inner packing all use stainless steel, so that no rust when contact water.

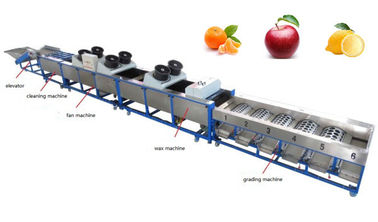

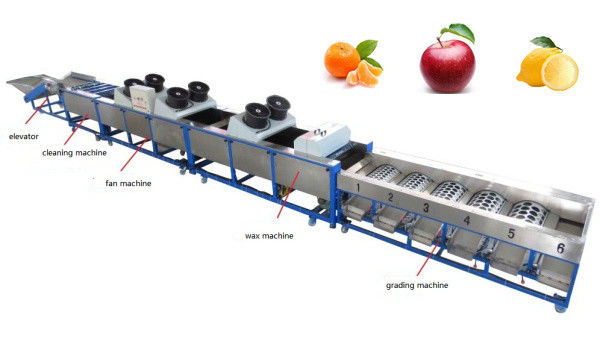

Specification :

Elevator Dimension : 4*0.7*1m, use stainless steel pipes, with stepless speed regulating motor :0.55kw
Brushes and water cleaning machine Dimension : 2.7*0.9*1.4m, 20 pcs brushes, install washing spray device and 1 group fans, motor power : 2.2kw
Fan dryer Dimension : 2.7*0.9*1.4m,made by 20pcs brushes , 2 group high pressure fan , motor power : 2.2kw
Waxing machine Dimension : 2.7*0.9*1.4m, made by 10 pcs cleaning brushes and 10 pcs horse bristle brush, install 1 group high pressure fan and waxing system, power :2.2kw
Grading machine Dimension : 2.5*1.1*0.85m, 5 barrels, 6 grades, grading 55mm, 60mm, 65mm, 70mm, 75mm and >75mm, or can make according to customer needs, power :0.75kw
Electric control cabinet 1set
Capacity 3t/h
Voltage 380v,50hz



Can also use no water cleaning, fan drying and wax, but just grading machine
