barbecue stick machine, BBQ stick making machine, toothpick machine

China barbecue stick machine, BBQ stick making machine, toothpick machine supplier

Large Image :  barbecue stick machine, BBQ stick making machine, toothpick machine

Product Details:

Place of Origin: China
Brand Name: fude
Model Number: 800,000pcs/8hs

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $8000/set
Packaging Details: non fumigation export standard wooden case
Delivery Time: 15-20days
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 100set/m
Contact Now
Detailed Product Description
Material: Carbon Steel Need Workers: 4-6
Power: Three Phase, 380v,50hz Can Make: Toothpick, Barbecue Stick
Warranty: One Year Shipping: EXW,FOB,CNF,CIF

bamboo toothpick making machine, toothpick production line, barbecue stick machine

barbecue stick machine, BBQ stick making machine, toothpick machine

This line capacity 800,000pcs/8hs, about 100kg. Need 4-6 workers, use 380v three phase power, if add another one toothpick sharpening machine, the capacity will be doubled.

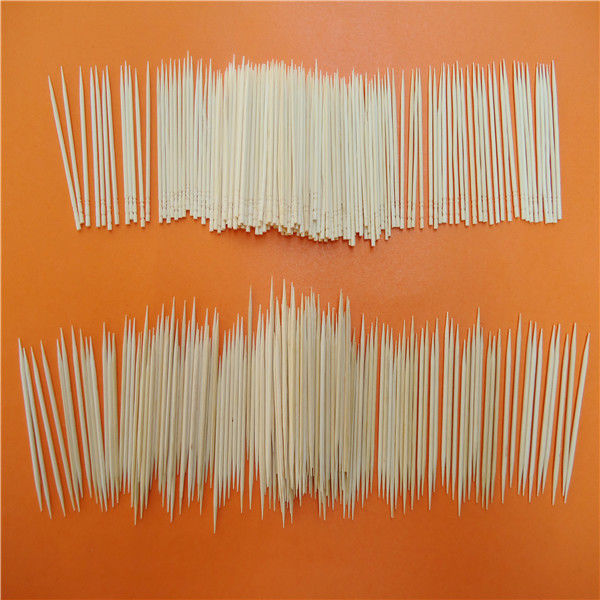

Usually 100kg fresh bamboo, can produce diameter 2mm, length 65mm toothpick 100,000-130,000pcs, after drying the toothpick about 13-16kg.



If the user needs to produce the stick only one end sharp, then the machine 9 (a sharpener) can be replaced.



No. Machine name Specification
1 bamboo sawing machine

Power:380v,1.5kw

Weight:60kg

Dimension:750*600*1300mm

2 bamboo slitting machine

Power:380v,3kw

Weight:530kg

Dimension:3000*950*1200mm

3 bamboo wafer separator

Power:380v,3kw

Weight:260kg

Dimension:1180*680*1100mm

4 bamboo filament forming machine

Power:380v,9.1kw

Weight:400kg

Dimension:1020*690*1050mm

5 bamboo filament sizing machine

Power:380v,0.75kw

Weight:75kg

Dimension:800*700*900mm

6 toothpick sizing machine

Power:380v,2.57kw

Weight:140kg

Dimension:900*700*950mm

7 toothpick polishing machine

Power:380v,1.1kw

Weight:110kg

Dimension:1050*1050*1200mm

8 toothpick sorting machine

Power:380v,0.37kw

Weight:65kg

Dimension:1050*900*850mm

9 toothpick sharpening machine

Power:380v,1.65kw

Weight:160kg

Dimension:950*650*1050mm

10 knife grinding machine

Power:380v,0.37kw

Weight:50kg

Dimension:450*400*870mm
