Product Details:
Place of Origin: China
Brand Name: fude
Certification: CE
Model Number: 100-200kg/h frozen peas
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $10000-50000/set
Packaging Details: non fumigation export standard wooden case
Delivery Time: 30-50days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1set/month
Detailed Product Description
Material: Stainless Steel 304 To Process: Quick-freezing Peas
Tunnel Compressor Quick-freezing Machine: 6600*2200*2000mm Packing Machine: With 4-head Weigher
Shipping: EXW.CFR,FOB,CIF Warranty: One Year

frozen peas processing machine, quick-freezing peas making machines

tunnel freezer, frozen peas making machines, fruit instant freezer 0

specification:

Machine picture Specification

Pea shelling machine



The pea sheller used to remove the pea pod, so that get inner peas, the machine with vibrating screen, material all use SUS304.



Dimension:1500*700*900mm

Voltage :220v,50hz

Power :1.5kw

Capacity :100-200kg/h



Elevator



The elevator use food grade material, smooth delivery, speed can adjust, other material all use SUS304.



Dimension :1700*2200*1800mm

belt width : 600mm

Power :1.1kw

Voltage : 380V /50Hz

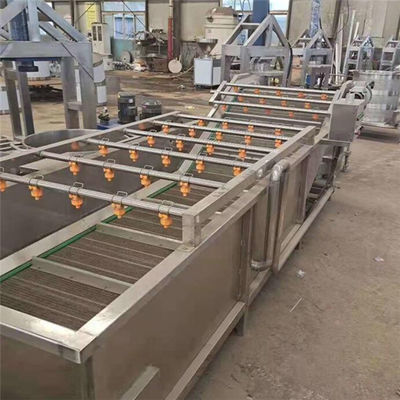

Bubble multifunctional washing machine



The machine use bubble water cleaning,use the high-pressure air flow generated by the whirlpool air pump, and the air bubbles generated by the aeration tube immersed in the water tank to impact the material, massage and scrub, imitate manual scrubbing, and remove the impurities, silt, etc. on the adhered material Debris stripping, large cleaning ability, high cleaning rate and no damage to materials. Material use SUS304.



Dimension : 3000*1000*1100mm

Belt width: 800mm

voltage: 380V /50Hz

Power : 5.5KW

Discharge: automatic delivery washing time: can adjust

Spray device: cyclic spray

Blanching and color protection machine



The equipment adopts a temperature control system, the water quality rises quickly, the heating is uniform, the temperature difference is small, and the temperature is adjustable. The cooking machine can effectively mix the materials in the medium water in a balanced manner, providing a good effect on the cooking of items. Material use SUS304.



Dimension :4000*1528*1100mm

Belt width :800mm

Voltage : 380V /50Hz

Power : 48KW

Working speed : adjust

Cooking time :adjust

Heating method : electricity

Cooling machine



The blanched peas quickly enter into the cooling machine, which can better protect the color of the peas and improve the quality of the peas. Use normal temperature water circulation to cool down. Material use SUS304.



Dimension : 5000*1000*1100mm

Belt width : 800mm

Voltage :380V /50Hz

Power : 3.3KW

Washing time : can adjust

Discharge method : automatic



Vibration Drainer



Driven by the motor, the vibration damping spring makes the screen surface mechanically vibrate regularly, which plays the role of uniform distribution



Dimension :1500*800mm

Power :0.25kw*2pcs=0.5kw

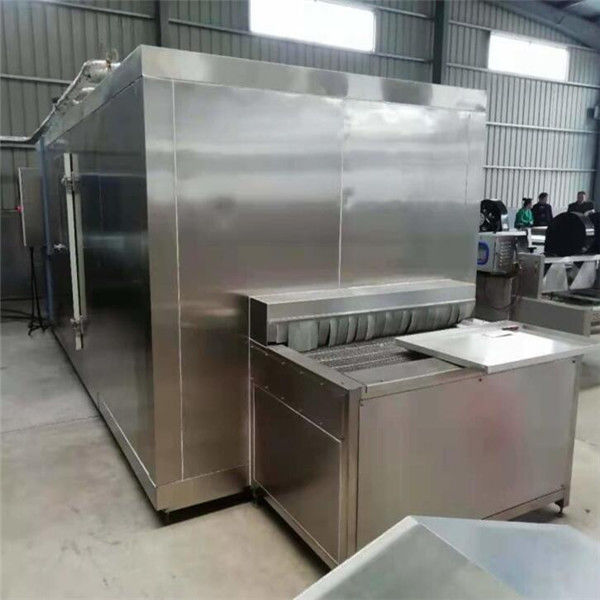

Tunnel compressor quick-freezing machine



The quick-freezing machine is composed of a feed inlet, a thermal storage body, a feed outlet, a transmission system, a circulating air system, an evaporator, and an electric control system.



Feeding temperature:+20℃

Output temperature:-18℃

Freezing time:10~40min adjust

Freezing capacity:100kg/h

structure type:Continuous

Freeze form:Blow freezing

Dimension :6600*2200*2000mm

Main body length: 6600mm

Belt width:1000mm

Belt material: Stainless steel 304

Feeding length :800mm

Output length:1000mm

Doors number :4

Automatic packing machine with 4-head weigher, coding machine



The packing machine with 4-head weigher, Z-type elevator, work platform, and coding machine.



Bag size : width : 80-200mm,

lenght: 80-280mm

Packing speed : 25-50bags/min

Weighing range: 30-500g

Power : 220v,50hz,3.5kw
