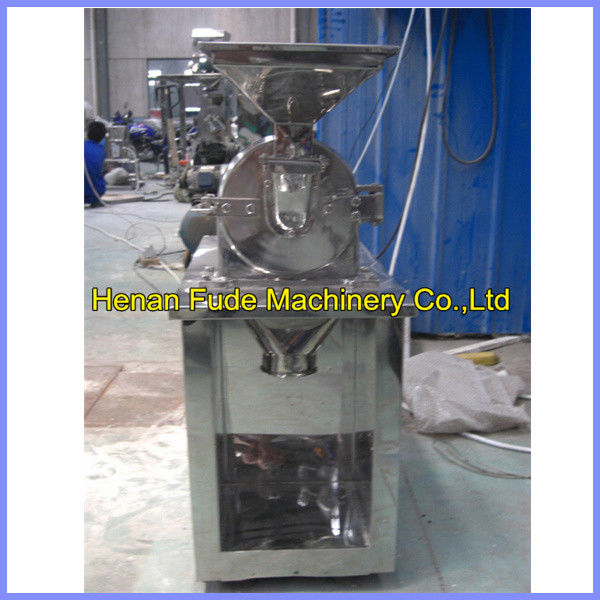

small soybean powder milling machine, mung bean powder grinding machine

China small soybean powder milling machine, mung bean powder grinding machine supplier

Large Image :  small soybean powder milling machine, mung bean powder grinding machine

Product Details:

Place of Origin: China
Brand Name: fude
Model Number: FD20

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: non fumigation export standard wooden case
Delivery Time: 15-20days
Payment Terms: TT,LC
Supply Ability: 100pcs/m
Contact Now
Detailed Product Description
Capacity: 20-250kg/h Spindle Speed: 4500r/min
Feeding Material: 6mm

small soybean powder milling machine, mung bean powder grinding machine

small soybean powder milling machine, mung bean powder grinding machine

Grinding machine inside adopts high-speed rotary grinding wheel cutter,this grinding machine inside is with large air volume, not easy to get heating.It has advantage of stable running,easy disassembly and cleaning, low noise, good effect for the smash. The machine made by SUS304.



Applied :

sugar, salt, rice, corn, oats, wheat, beans, chickpeas,peas,lentils ,cocoa powder, coffee beans,dehydrated vegetables, chinese medicine, herbal flavors, fragrance, etc.



Working process:

1. Put raw material into the hopper, then leaks into the crashing cabin.

2. The relative motion between the activities and fixed gear tooth plate, make the material crushed into powder by the tooth impact and friction.

3.The ground powder will leaks from the screen stencil, gets out from the discharge hole.



Specification :

Model

FD20

FD30

FD40

Capacity

20-250kg/h

30-300kg/h

40-800kg/h

Spindle speed

4500r/min

3800r/min

3400r/min

Feeding material

6mm

10mm

12mm

Crushing fineness

12-120m

12-120m

12-120m

Power

4kw

5.5kw

11kw

Weight

250kg

320kg

550kg

Dimension

550*600*1250mm

500*700*1450mm

800*900*1550mm

Mesh Size for Refernce

Screen hole size

      (mm)

  Standard mesh

Screen hole size

      (mm)

  Standard mesh

1.70

12 mesh

0.425

40 mesh

1.40

14 mesh

0.355

45 mesh

1.18

16 mesh

0.300

50 mesh

1.00

18 mesh

0.250

60 mesh

0.850

20 mesh

0.212

70 mesh

0.710

25 mesh

0.180

80 mesh

0.600

30 mesh

0.150

100 mesh

0.500

35 mesh

0.125

120 mesh

small model  :

small soybean powder milling machine, mung bean powder grinding machine

Specification :

Model

FDSC130

FDSC180

Spindle speed

7000r/min

7000r/min

Capacity

2-5kg/h

10-30kg/h

Power

1.1kw

2.2kw

Crushing fineness

10-120m

10-120m

Dimension

400*350*830mm

690*420*880mm

Weight

75kg

85kg

small soybean powder milling machine, mung bean powder grinding machine
