buckwheat sheller, buckwheat shelling machine

China buckwheat sheller, buckwheat shelling machine supplier

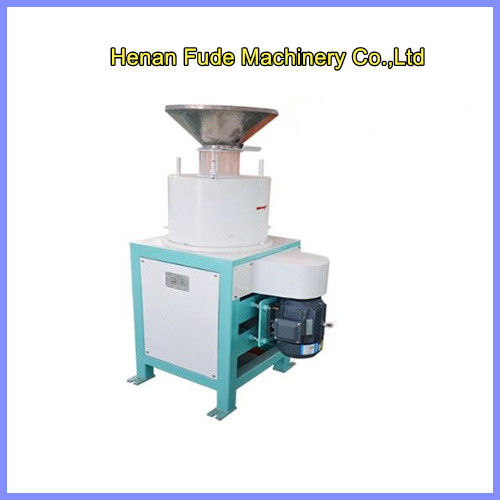

Large Image :  buckwheat sheller, buckwheat shelling machine

Product Details:

Place of Origin: China
Brand Name: fude
Model Number: FDKS-30Q

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: non fumigation export standard wooden case
Delivery Time: 15-20days
Payment Terms: TT,LC
Supply Ability: 100pcs/m
Contact Now
Detailed Product Description
Capacity: 120kg/h Power: 2.2kw
Voltage: 380v,50hz

Buckwheat dehuller, buckwheat huller, buckwheat sheller, buckwheat shelling machine

buckwheat sheller, buckwheat shelling machine

The buckwheat dehuller has high hulling ratio with less broken rate; Clearance between emery roll can be adjusted, which ensures the effect of hulling ratio.
Buckwheat raw materials should be processed by cleaning and classifying before shelling. The mud,stone, soil, large and small impurities is removed first by multifunctional shaker. Then the material is conveyed to the classifying screen by bucket elevator for classifying. After this, it can enter into the buckwheat shelling machine.

Buckwheat huller working process:

Buckwheat huller is equipped with two emery rollers (lower and upper roller). When the raw material flows into the husking chamber, the high-speed rotating emery rollers cut and rub the buckwheat cortex continuously, which destroys the bonding strength between buckwheat shell and kernels. In this way, buckwheat husk is removed. After hulling, the buckwheat is processed by windmill screen, then enters into classifying screen. By vibrating and sorting, the buckwheat kernels and husks are separated and then the finished products are packaged. The unhulled buckwheat is sent back to the huller for continuous shelling.

Specification :

Model

FDKS-30Q

FDKS-30Q*4

Capacity

120kg/h

500kg/h

Power

2.2kw

6kw

Voltage

380v,50hz

380v,50hz

Weight

280kg

900kg

Dimension

1000*400*1200mm

1200*1200*1670mm

buckwheat sheller, buckwheat shelling machine

buckwheat sheller, buckwheat shelling machine
