pepper grinder, rice grinding miller, mung bean grinding machine

Large Image : pepper grinder, rice grinding miller, mung bean grinding machine Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	fude
Model Number:	FD20

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	non fumigation export standard wooden case
Delivery Time:	15-20days
Payment Terms:	TT,LC
Supply Ability:	100pcs/m

Contact Now

Detailed Product Description

Capacity:	20-250kg/h	Spindle Speed:	4500r/min
Feeding Material:	6mm

Samp/pepper/rice grinding machine, oat wheat grinding machine

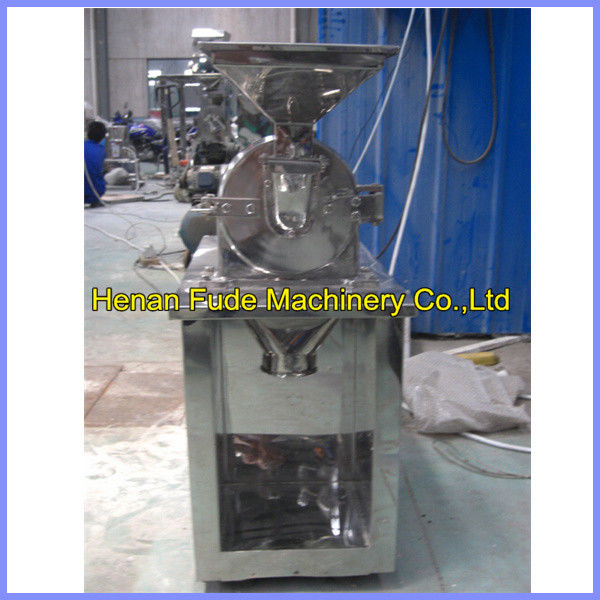

pepper grinder, rice grinding miller, mung bean grinding machine 0

soybean Grinding machine inside adopts high-speed rotary grinding wheel cutter,this grinding machine inside is with large air volume, not easy to get heating.It has advantage of stable running,easy disassembly and cleaning, low noise, good effect for the smash. The machine made by SUS304.

Applied :

sugar, salt, rice, corn, oats, wheat, beans, chickpeas,peas,lentils ,cocoa powder, coffee beans,dehydrated vegetables, chinese medicine, herbal flavors, fragrance, etc.

Working process:

1. Put raw material into the hopper, then leaks into the crashing cabin.

2. The relative motion between the activities and fixed gear tooth plate, make the material crushed into powder by the tooth impact and friction.

3.The ground powder will leaks from the screen stencil, gets out from the discharge hole.

Specification :

Model	FD20	FD30	FD40
Capacity	20-250kg/h	30-300kg/h	40-800kg/h
Spindle speed	4500r/min	3800r/min	3400r/min
Feeding material	6mm	10mm	12mm
Crushing fineness	12-120m	12-120m	12-120m
Power	4kw	5.5kw	11kw
Weight	250kg	320kg	550kg
Dimension	5506001250mm	5007001450mm	8009001550mm

Mesh Size for Refernce

Screen hole size (mm)	Standard mesh	Screen hole size (mm)	Standard mesh
1.70	12 mesh	0.425	40 mesh
1.40	14 mesh	0.355	45 mesh
1.18	16 mesh	0.300	50 mesh
1.00	18 mesh	0.250	60 mesh
0.850	20 mesh	0.212	70 mesh
0.710	25 mesh	0.180	80 mesh
0.600	30 mesh	0.150	100 mesh
0.500	35 mesh	0.125	120 mesh

small model :

pepper grinder, rice grinding miller, mung bean grinding machine 1

Specification :

Model	FDSC130	FDSC180
Spindle speed	7000r/min	7000r/min
Capacity	2-5kg/h	10-30kg/h
Power	1.1kw	2.2kw
Crushing fineness	10-120m	10-120m
Dimension	400350830mm	690420880mm
Weight	75kg	85kg
