candy packing machine, pistachio packaging machine

candy packing machine, pistachio packaging machine
candy packing machine, pistachio packaging machine candy packing machine, pistachio packaging machine

Large Image :  candy packing machine, pistachio packaging machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: fude
Model Number: FDXY-90-420
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: non fumigation export standard wooden case
Delivery Time: 15-20days
Payment Terms: TT,LC
Supply Ability: 100pcs/m
Detailed Product Description
Sealing: Back Sealing Filling Weight: 5~1000g/pouch
Speed: 30-80pouch/min

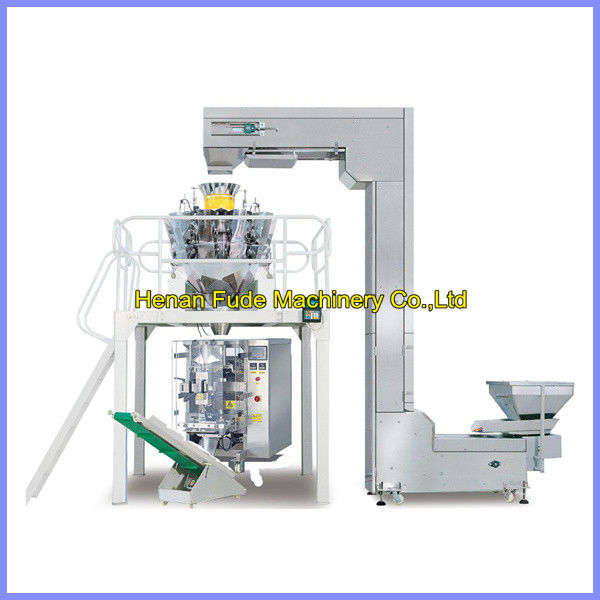

Ten heads combination weighing automatic packing machine

candy packing machine, pistachio packaging machine 0

The unit included six parts:
1. vertical packing machine
2.10 heads combination weigher
3. Z type bucket elevator
4. Vibration feeder
5. Supporting platform
6. Product conveyor

The machine suitable for candy, sunflower seeds, potato chips, mango slices, pistachio, peanuts, jelly, frozen soup balls, pet foods, puffed food, frozen dumplings, chocolate, small hardware, etc granulates, slices, and strips, automatic weighing and packing.

Features
1. package material is driven by servo motor control, bag length stable,accurate positioning;
2. adopt PID temperature controller, temperature controller  is more precise;
3. PLC is used to control the machine movement ,man-machine interface display,convenient operation;
4. all parts contacting material for the SUS304 stainless steel production,ensure product and reliable health;
5. part of the working cylinder adopt imported parts,ensuring the working accuracy and stability;
6. this machine additional device can complete flat mouth shear,date printing,easy to tear the mouth and other functions;
7. feeding mode according to the different material ingredients dish,screw,electronic scale,accurate measurement.

Specification :

Model

FDXY-90-420

Sealing

Back sealing

Filling weight

5~1000g/pouch

Speed

30-80pouch/min

Bag-making size

length:50~320mm width:60~230mm

Voltage

220V/50HZ,single phase

Power

3.7kw

Weight

650KG

Dimension

1400*2000*3200mm

Packing material

POPP/CPP,POPP/VMCPP,CPP/PE etc.

Use environment

-5℃~45℃;humidity :30-85%

Power source

Compressed air 0.6×105Pa

Air consumption

350L/min

candy packing machine, pistachio packaging machine 1
