Commercial smokehouse machine ,sausage smokehouse, meat smoker machine

Certification
Good quality garlic processing machine for sales
Good quality garlic processing machine for sales
The machine works fine! It saved us hours of time. Thank you!

—— Mike

Yes ma'am. Everything is great.

—— Cassy

I thank you for your kindness and professional in our communication. We keep in touch.

—— JJC

I'm Online Chat Now

Commercial smokehouse machine ,sausage smokehouse, meat smoker machine

China Commercial smokehouse machine ,sausage smokehouse, meat smoker machine supplier

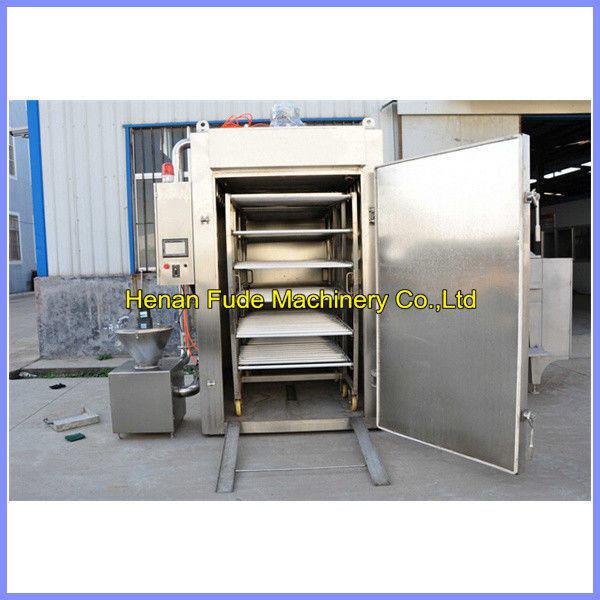

Large Image :  Commercial smokehouse machine ,sausage smokehouse, meat smoker machine

Product Details:

Place of Origin: China
Brand Name: fude
Model Number: FDYX-250

Payment & Shipping Terms:

Minimum Order Quantity: pc
Price: negotiation
Packaging Details: non fumigation export standard wooden case
Delivery Time: 15-20days
Payment Terms: TT,LC,Western Union
Supply Ability: 100pcs/m
Contact Now
Detailed Product Description
Capacity: 200-250kg/h Power: 7.5kw
Machine Size: 1480*1200*2800mm

Commercial sausage meat smoke house

Commercial smokehouse machine ,sausage smokehouse, meat smoker machine

Commercial smokehouse machine ,sausage smokehouse, meat smoker machine

Sausage smokehouse material use SUS304, with smoking, drying, cooking, cleaning and roasting etc function. Customer can choose the processing procedure according to your needs, realize the curing and sterilization, PLC control, easy operation. Drying, cooking, and smoking converted automatically by setting time, also temperature control and process ends displayed automatically. The circulating fan blowing uniformity, make the furnace temperature uniformity, and the machine specially use double stainless steel radiator, excellent drying effect. With spraying, cleaning function, set parameter mode, widely used in meat processing .

Feature :

1. Fully automatic computer control : realize remote control, can storage 100 technical formula.

2. Special hot air circulating system : keep the temperature and humidity uniformity.

3. Thermal insulation material : use imported polyurethane heat preservation material.

4. Control component : PLC, solenoid valve use imported.

5. Heating method : steam or electricity.

6. Box system : use SUS304, food grade sealing strip.

7. Cleaning system : set automatically.

8. Smoking system : external wood smoke system.


Specification :

Small model :

Model

FDYX-30

FDYX-50

FDYX-100

FDYX-150

Capacity  (kg/batch)

20-30

30-50

50-100

70-150

Power(kw)

3.5

3.5/9.5

4.0/13

4.5/19.5

High pressure (MPa)

0.3-0.6

0.3-0.6

0.3-0.6

0.3-0.6

Low pressure(MPa)

0.1-0.2

0.1-0.2

0.1-0.2

0.1-0.2

Furnace temperature

<100

<100

<100

<100

Water pressure

0.2

0.2

0.2

0.2

Car size (mm)

670*680*650

700*730*920

815*860*1150

866*880*1250

Machine size (mm)

1070*780*1260

920*820*1600

1150*950*1980

1230*1000*2160

Weight (kg)

230

300

700

800

Smoking system

Internal

Internal

Internal

Internal



Big model :

Model

FDYX-200

FDYX-250

FDYX-500

FDYX-1000

Capacity  (kg/batch)

100-200

200-250

250-500

500-1000

Power(kw)

5.5/24.5

7.5/31.5

13.5/61

24.5/72

High pressure (MPa)

0.3-0.6

0.3-0.6

0.3-0.6

0.3-0.6

Low pressure(MPa)

0.1-0.2

0.1-0.2

0.1-0.2

0.1-0.2

Furnace temperatue

<100

<100

<100

<100

Water pressure

0.2

0.2

0.2

0.2

Car size (mm)

920*930*1380

1000*1030*1840

1000*1030*1840

1000*1030*1840



Machine size (mm)

1340*1060*2400

1480*1200*2800

2850*1400*2800

4490*1550*3000

Weight (kg)

1200

1900

2600

4000

Smoking system

External

External

External

External

Commercial smokehouse machine ,sausage smokehouse, meat smoker machine
