peanut butter production line, peanut butter making machine

Certification
Good quality garlic processing machine for sales
Good quality garlic processing machine for sales
The machine works fine! It saved us hours of time. Thank you!

—— Mike

Yes ma'am. Everything is great.

—— Cassy

I thank you for your kindness and professional in our communication. We keep in touch.

—— JJC

I'm Online Chat Now

peanut butter production line, peanut butter making machine

China peanut butter production line, peanut butter making machine supplier
peanut butter production line, peanut butter making machine supplier peanut butter production line, peanut butter making machine supplier

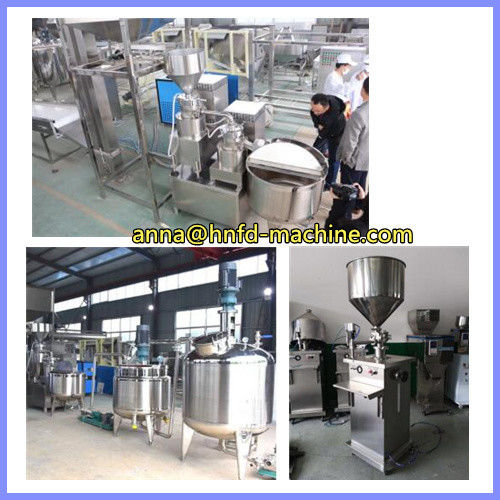

Large Image :  peanut butter production line, peanut butter making machine

Product Details:

Place of Origin: china
Brand Name: fude
Model Number: peanut butter making line 200kg/h

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $10000-30000/set
Packaging Details: container, export standard wooden case
Delivery Time: 50-60days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5sets/m
Contact Now
Detailed Product Description
Capacity: 200kg/h Cooling Belt: 1.1kw
Elevator: 0.75kw

200kg/h peanut butter processing line, peanut butter making machine, automatic peanut butter machines

peanut butter production line, peanut butter making machine

Process: peanut roaster,cooling,elevator, peeling half kernel,picking, elevator,grinding, second grinding,storage,seasoning,cooling,filling.

Please note: different requires, different quality, please notify us your peanut butter quality, so that can arrange suitable machines.



peanut butter production line, peanut butter making machine

Peanut roaster

Capacity :200-240kg/h

Temperature :-300 degree,automatic

Heating power :50kw

Motor : 2.2kw

Dimension : 1800*2200*1700mm



Cooling belt

Power:1.1KW

Speed: adjustable

Voltage : 380V

Frequency : 50HZ

Dimension : 5000*900*850mm



Elevator

Dimension :600*600mm

Power: 0.75KW

Voltage: 380V

Frequency :50HZ

Use reducer, speed adjustable



Peanut peeling machine with half kernel

Capacity:400kg/h

voltage:380v

power:1.85KW

frequency :50HZ

Dimension :1900*800*1400mm

weight :300kg



Picking/selecting belt

Power : 1.1KW

Voltage : 380V

Frequency : 50HZ

Dimension : 5000*900*850mm

Use reducer, speed adjustable



Peanut butter grinding machine

Two times grinding

Into 2-100um

Dimension :1100*750*1300mm

Power : 29.5kw



Vacuum tank

Dimension :Φ1000×1700

Mm

Reducer Power : 2.2kw

Water pump :2.2kw

Capacity : 500L

With connect pipes,valves,elbows,etc



Semi-automatic filling machine

Capacity : 100-400bottls/h

Bottle capacity :100-1000ml

Voltage :220v,50hz

Error :≤±1.5%FS

Power :0.2-2kw

air compressor : 0.4-1MPa

Air : 0.1m3/min
