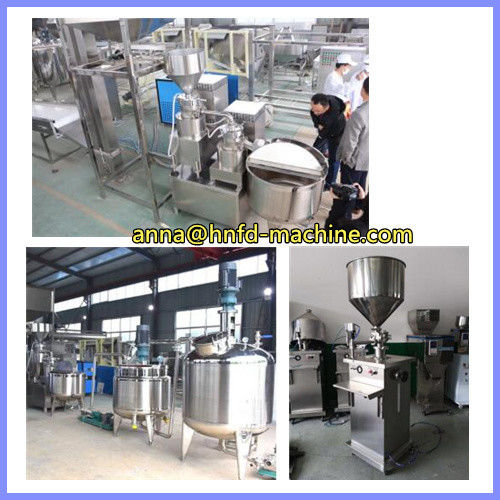

peanut butter production line, peanut butter making machine

200kg/h peanut butter processing line, peanut butter making machine, automatic peanut butter machines

Process: peanut roaster,cooling,elevator, peeling half kernel,picking, elevator,grinding, second grinding,storage,seasoning,cooling,filling.

Please note: different requires, different quality, please notify us your peanut butter quality, so that can arrange suitable machines.



Peanut roaster

Capacity :200-240kg/h

Temperature :-300 degree,automatic

Heating power :50kw

Motor : 2.2kw

Dimension : 1800*2200*1700mm



Cooling belt

Power:1.1KW

Speed: adjustable

Voltage : 380V

Frequency : 50HZ

Dimension : 5000*900*850mm



Elevator

Dimension :600*600mm

Power: 0.75KW

Voltage: 380V

Frequency :50HZ

Use reducer, speed adjustable



Peanut peeling machine with half kernel

Capacity:400kg/h

voltage:380v

power:1.85KW

frequency :50HZ

Dimension :1900*800*1400mm

weight :300kg



Picking/selecting belt

Power : 1.1KW

Voltage : 380V

Frequency : 50HZ

Dimension : 5000*900*850mm

Use reducer, speed adjustable



Peanut butter grinding machine

Two times grinding

Into 2-100um

Dimension :1100*750*1300mm

Power : 29.5kw



Vacuum tank

Dimension :Φ1000×1700

Mm

Reducer Power : 2.2kw

Water pump :2.2kw

Capacity : 500L

With connect pipes,valves,elbows,etc



Semi-automatic filling machine

Capacity : 100-400bottls/h

Bottle capacity :100-1000ml

Voltage :220v,50hz

Error :≤±1.5%FS

Power :0.2-2kw

air compressor : 0.4-1MPa

Air : 0.1m3/min
