peanut sieving and grading production line, peanut grading machine

China peanut sieving and grading production line, peanut grading machine supplier

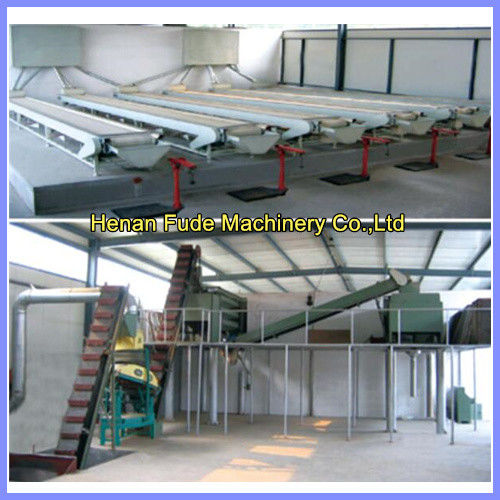

Large Image :  peanut sieving and grading production line, peanut grading machine

Product Details:

Place of Origin: China
Brand Name: fude
Model Number: FDPEG-1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: non fumigation export standard wooden case
Delivery Time: 15-20days
Payment Terms: TT,LC
Supply Ability: 100pcs/m
Contact Now
Detailed Product Description
Capacity: 6000kg/h Round Shape: 25/35,35/40,40/50,50/60,60/70,70/80 /ounce
Long Shape: 24/28,28/32,34/38,38/42,45/55 /ounce

peanut sieving and grading production line, peanut grading machine, peanut sorting machine

peanut sieving and grading production line, peanut grading machine

The peanut sieving and grading production line is mainly used for grading uneven peanut into several even sizes peanut. For instance round peanut can be graded into 25/35,35/40,40/50,50/60,60/70,70/80 and the long shape peanut can be graded into 24/28,28/32,34/38,38/42,45/55.

Principle : the grading will be dome by replacing the sieving meshes. The line can remove impurity ( for example stone, metal, soil block, red skin , dust and so on), grading and selection.

The line with high efficiency, non-damaged, low noisy and convenient operation.

Components : lifting part, removing stone part, sieving part, distributing part and selecting part.

Process : feeding -- first grade elevator -- destoner --second grade elevator -- main sieving machine -- conveyor -- sieving machine auxiliary -- distributing system -- conveying and selecting -- finished products.



Specification :

Model

FDPEG-1

Capacity

6000kg/h

Power

28.5kw

Grades

Round shape :25/35,35/40,40/50,50/60,60/70,70/80 /ounce

Long shape : 24/28,28/32,34/38,38/42,45/55 /ounce

Size

2500*12000*5500mm

Weight

15500kg
