peanut sieving and grading production line, peanut grading machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Capacity: | 6000kg/h | Round Shape: | 25/35,35/40,40/50,50/60,60/70,70/80 /ounce |
|---|---|---|---|
| Long Shape: | 24/28,28/32,34/38,38/42,45/55 /ounce |

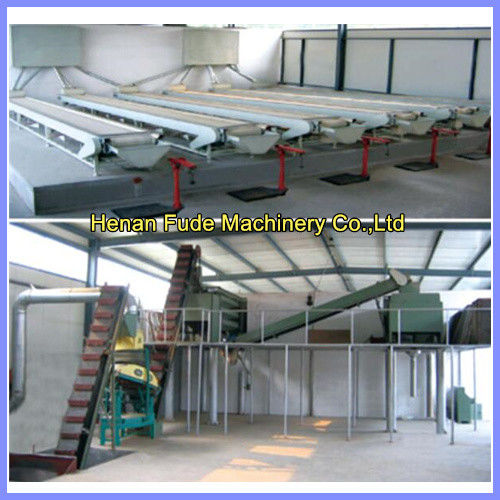

peanut sieving and grading production line, peanut grading machine, peanut sorting machine
The peanut sieving and grading production line is mainly used for grading uneven peanut into several even sizes peanut. For instance round peanut can be graded into 25/35,35/40,40/50,50/60,60/70,70/80 and the long shape peanut can be graded into 24/28,28/32,34/38,38/42,45/55.
Principle : the grading will be dome by replacing the sieving meshes. The line can remove impurity ( for example stone, metal, soil block, red skin , dust and so on), grading and selection.
The line with high efficiency, non-damaged, low noisy and convenient operation.
Components : lifting part, removing stone part, sieving part, distributing part and selecting part.
Process : feeding -- first grade elevator -- destoner --second grade elevator -- main sieving machine -- conveyor -- sieving machine auxiliary -- distributing system -- conveying and selecting -- finished products.
Specification :
|
Model |
FDPEG-1 |
|
Capacity |
6000kg/h |
|
Power |
28.5kw |
|
Grades |
Round shape :25/35,35/40,40/50,50/60,60/70,70/80 /ounce Long shape : 24/28,28/32,34/38,38/42,45/55 /ounce |
|
Size |
2500*12000*5500mm |
|
Weight |
15500kg |
