Material: | Carbon Steel | Capacity: | 600,000pcs/8hs |
---|---|---|---|
Can Make: | Toothpick, BBQ Stick, Etc | Workers: | 3-5 |
Shipping: | EXW,FOB,CNF,CIF | Warranty: | One Year |
wood stick making machine, BBQ stick machine, skewer stick machine
This line capacity 600,000pcs/8hs( diameter 2.2mm, length 65mm ). Need 3-5 workers, use 380v three phase power. If add another one toothpick sharpening machine, the capacity will be doubled.
Usually 1m3 wood, can produce diameter 2.2mm*65mm toothpick about 1,200,000pcs, wood about 150-200kg.

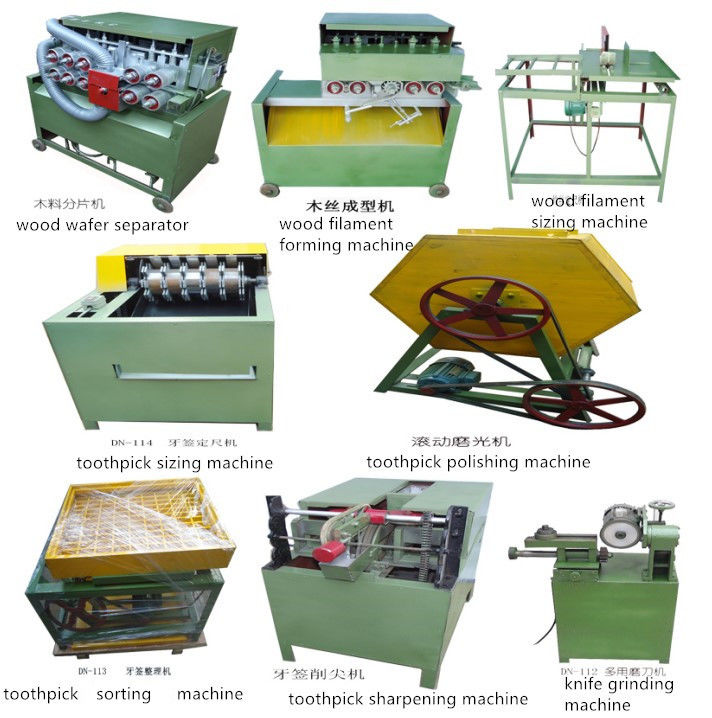

Product picture :
Specification :
No. | Machine name | Specification |
1 | Wood wafer separator |
Power:380v,6.05kw Weight:260kg Dimension:1050*680*1050mm |
2 | Wood filament forming machine |
Power:380v,4.77kw Weight:260kg Dimension:1050*680*1050mm |
3 | wood filament sizing machine |
Power:380v,0.75kw Weight:75kg Dimension:800*700*900mm |
4 | toothpick sizing machine |
Power:380v,2.57kw Weight:140kg Dimension:900*700*950mm |
5 | toothpick polishing machine |
Power:380v,1.1kw Weight:110kg Dimension:1050*1050*1200mm |
6 | toothpick sorting machine |
Power:380v,0.37kw Weight:65kg Dimension:1050*900*850mm |
7 | toothpick sharpening machine |
Power:380v,1.65kw Weight:160kg Dimension:950*650*1050mm |
8 | knife grinding machine |
Power:380v,0.37kw Weight:60kg Dimension:700*500*850mm |
