sausage making machines, sausage filling machine, sausage stuffing machine

Frozen meat grinder

Model: FDJR-120

Capacity : 600-1000kg/h

Power : 5.5KW

Rotating speed : 240r/min

Dimension : 950*620*1060mm

Weight : 460kg

Bowl cutter

Model : FDZB-125

Volume :125L

Capacity :60kg-70kg/time

Blades :6pcs

Blades speed:1550/3100r/min

Bowl speed: 12/18r/min

Bowl diameter:φ1098mm

Power :27KW

Weight :1500kg

Dimension :2380*1360*1360

Vacuum mixer

Model :FDBX-200

Capacity :150kg/time

Power: 1.1KW*2

Mixing shaft speed :50r/min

Weight : 460kg

Dimension :1620*690*1180mm

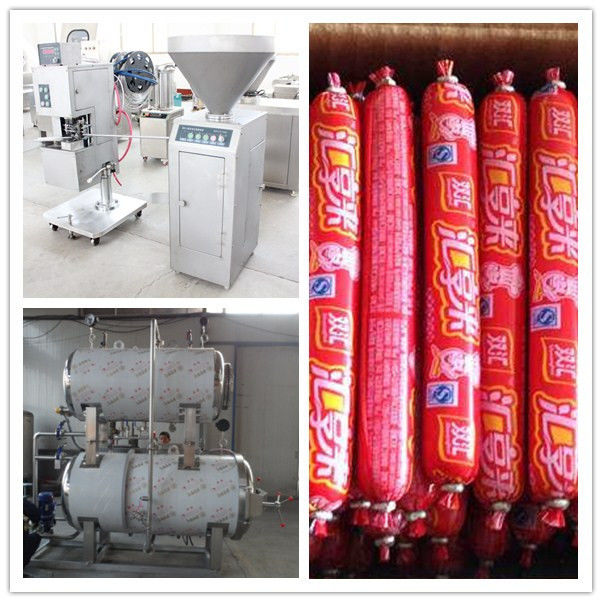

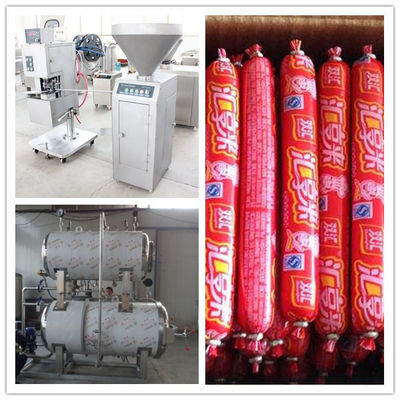

Automatic sausage filling and sealing machine

Sausage filling machine

Model:SGI-I

Filling speed:80pcs/min

Quantitative range:50-1000g

Air supply:0.7Mpa(minimum)

Voltage:220v,50hz

Hopper volume:57L

Filling tube:φ15,φ20,φ25,φ33

Dimension:640×640×1430mm

Weight:130kg

Buckling machine

Maximum speed:50times/min

Casing diameter:35-120mm

Aluminium wire diameter:2.1-2.9mm

Air supply:0.7Mpa(minimum)

Voltage:220v,50hz

Dimension:630×630×1500mm

Weight:290kg

High temperature sterilization pot

Barrel length:1800 mm

Model :double

Heating power:45 kw

Total power:48 kw

Water pump power : 3 kw

Boiler steam:0.3T/H

Air compressor: 0.6m3/min, /8MPa

Water tank:4.5m3

sterilization pot

Volume : 1.1m3

Hot water tank:0.64 m3

Dimension : 2450*1200*1600mm
