chocolate refiner, chocolate fine grinder, high-pressure homogenizer, viscolizer

Name: chocolate refiner, chocolate fine grinder, high-pressure homogenizer, viscolizer
Brand: fude
SKU: JJ-0.5/60
Price: 3000 USD
Availability: InStock
Rating: 4.8 (138 reviews)

Large Image : chocolate refiner, chocolate fine grinder, high-pressure homogenizer, viscolizer Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	fude
Certification:	CE
Model Number:	JJ-0.5/60

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$3000-5000/pc
Packaging Details:	non fumigation export standard wooden case
Delivery Time:	10-15days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Suitable For:	Super Fine Grinder, Like Peanut Butter, Chocolate Paste, Milk, Etc
Biggest Pressure:	60Mpa	Capacity:	500L/H
Shipping:	EXW,FOB,CNF,CIF	Warranty:	One Year

chocolate refiner, chocolate fine grinder, high-pressure homogenizer, viscolizer

chocolate refiner, chocolate fine grinder, high-pressure homogenizer, viscolizer 0

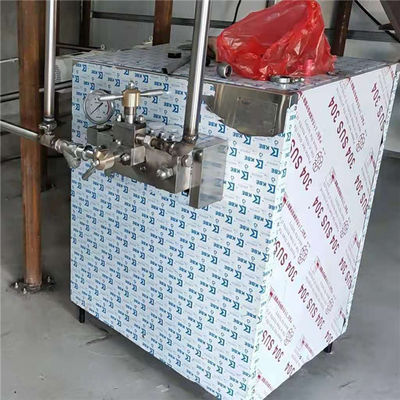

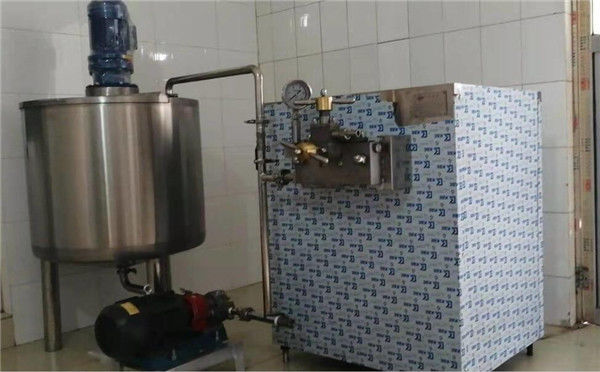

High-pressure homogenizer is a kind of ultra-fine crushing, emulsifying and homogenizing equipment. It uses the suspension under high pressure conditions to smash the particles and oil droplets in the liquid through the comprehensive effects of pressure loss, expansion, explosion, shear and high-speed impact when passing through an adjustable flow restriction gap (homogenization valve) Small size, minimum diameter Φ0.01-2μm, average Φ≤1μm, and at the same time establish ideal emulsion or dispersion. This process integrates the functional principles of ultrasonic pulverizer, colloid mill, ball mill, jet machine and so on. Product stability, consistency, mixing, easy absorption, nutritional value, shelf life, taste, color, and retention of activity can all be achieved in homogenization.

Machine main material use SUS304, wear parts are made of high-strength stainless steel and alloy.

Specification :

Model	JJ-0.5/60
Power	11kw
Working pressure	48Mpa
Biggest pressure	60Mpa
Flow	500L/H
Noise	≤60db
Cooling method	Water cooling
Transmission method	Belt
Input	Φ32
Output	Φ21
Cooling water input output	Φ14
Dimension	1030750990mm
