potato cleaning grading machine, potato cleaning sorting machines

potato cleaning grading machine, potato cleaning sorting machines
potato cleaning grading machine, potato cleaning sorting machines potato cleaning grading machine, potato cleaning sorting machines potato cleaning grading machine, potato cleaning sorting machines

Large Image :  potato cleaning grading machine, potato cleaning sorting machines Get Best Price

Product Details:
Place of Origin: china
Brand Name: AFS
Certification: CE
Model Number: brush cleaning 4grades
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $5000/pc
Packaging Details: export wooden case
Delivery Time: 10-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/m
Contact Now
Detailed Product Description
Material: Stainless Steel Elevator: 0.75kw, 380v, 50hz
Brush Cleaning Machine: 22pcs, Brush Roller Width 0.8 Meters Grading Machine: 2.2kw, 380v,50hz
Shipping: EXW,FOB,CNF,CIF Warranty: One Year

          Potato brush cleaning, grading processing line 4t/h



Process flow:

Potato elevator--- brush cleaning --- grading

This production line is suitable for potatoes grown on sandy land, not use water, but brushes to clean.

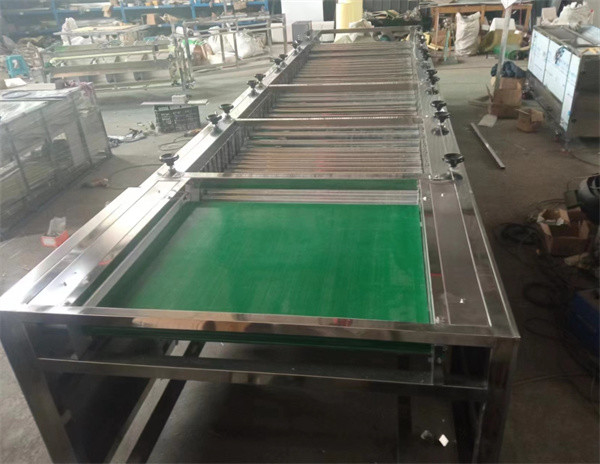

elevator

potato cleaning grading machine, potato cleaning sorting machines 0

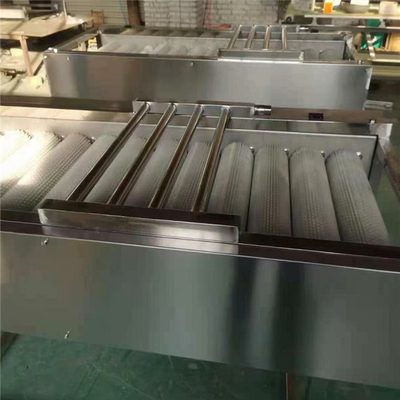

brushes cleaning machine : brush soft, not harm the potatoes

potato cleaning grading machine, potato cleaning sorting machines 1

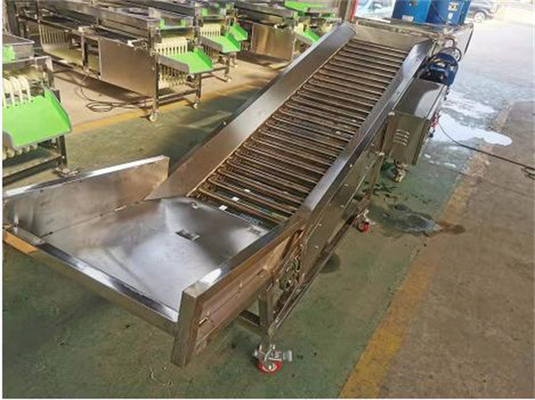

potato grading machine : can grading into different grades, like 4 grades, 5 grades, 6 grades, etc.

potato cleaning grading machine, potato cleaning sorting machines 2



Technical parameter:

Machine Specification

Potato elevator



Roller elevator

Dimension : 3*1.3*1.2m

Power : 0.75kw, 380v, 50hz

Motor: RV series variable frequency reduction motor;

Frame material: stainless steel 201 ;

Roller width: 800mm

Purpose: Used for material conveying and upgrading to the next step


Brush cleaning machine

Brush cleaning machine

Dimension : 3*1*1.5m

Power : transmission 1.5kw, 380v,50hz

Motor: RV series variable frequency reduction motor;

Frame material: stainless steel 201 ;

Brushes: 22pcs, brush roller width 0.8 meters;

Equipped with a soil conveyor below.



Potato grading machine



Potato grading machine into 4 grades

Dimension:4*1.85*1.15m

Power:2.2kw, 380v,50hz

Material: stainless stee2.2kw, 380v,50hzl 201 ;

roller effective width :980mm;

Grading specifications: 40-100mm user-adjustable;

Grading: 4 grades
