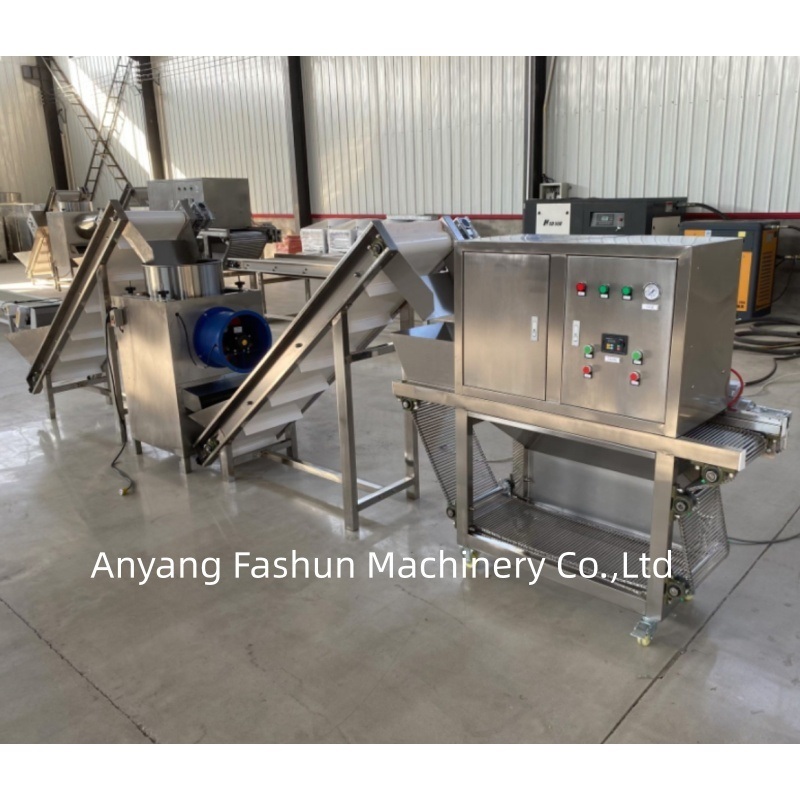

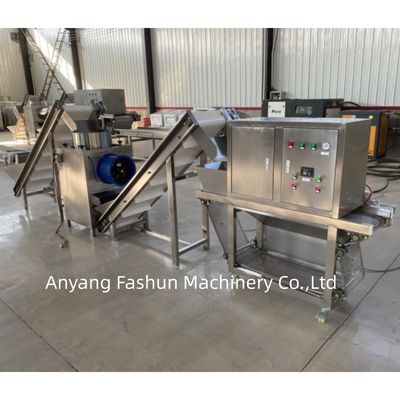

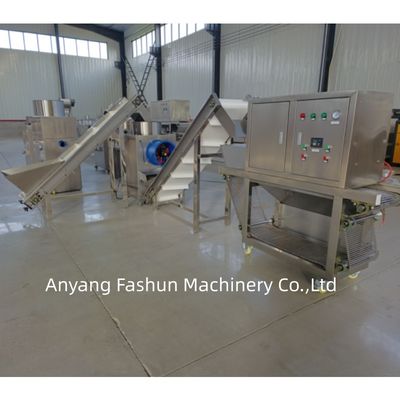

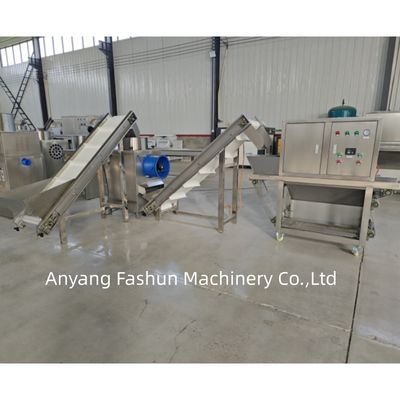

Garlic Peeling Machines, Garlic Processing Machines, Small Garlic Peeling Line 200-300kg/H

Garlic Peeling Machines, Garlic Processing Machines, Small Garlic Peeling Line 200-300kg/H
Garlic Peeling Machines, Garlic Processing Machines, Small Garlic Peeling Line 200-300kg/H Garlic Peeling Machines, Garlic Processing Machines, Small Garlic Peeling Line 200-300kg/H Garlic Peeling Machines, Garlic Processing Machines, Small Garlic Peeling Line 200-300kg/H Garlic Peeling Machines, Garlic Processing Machines, Small Garlic Peeling Line 200-300kg/H

Large Image :  Garlic Peeling Machines, Garlic Processing Machines, Small Garlic Peeling Line 200-300kg/H Get Best Price

Product Details:
Place of Origin: China
Brand Name: AFS
Certification: CE
Model Number: 300kg/h line
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $8000-10000/set
Packaging Details: non fumigation export standard wooden case
Delivery Time: 10-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/m
Contact Now
Detailed Product Description
Material: SUS201 Capacity: 200-300kg/h
Air Compressor: 22kw Garlic: Dry
Shipping: EXW,FOB,CNF,CIF Warranty: One Year

Garlic Peeling Machines, Garlic Processing Machines, Small Garlic Peeling Line 200-300kg/H

Garlic Peeling Machines, Garlic Processing Machines, Small Garlic Peeling Line 200-300kg/H 0

garlic peeling process :
garlic elevator---garlic bulb into cloves machine---garlic elevator---garlic peeling machine---garlic picking conveyor



The garlic peeling machine connect with air compressor, to remove the garlic skin, no damage to garlic, high quality. Material use Stainless steel 201.



Specification:

Machine name Specification

Garlic elevator



Voltage:380v,50hz

Power:0.55kw

Dimension:2000*500*1550mm

Weight:180kg

Speed : fixed





Garlic bulb into cloves machine



Voltage: 380v,50hz

Power:1.87kw

Dimension:1260*600*1180mm

Weight :138kg





Garlic elevator



Voltage:380v,50hz

Power:0.55kw

Dimension:2000*500*1550mm

Weight:180kg

Speed : fixed



Garlic peeling machine



Capacity:200-300kg/h

Input voltage:380v,50hz

Total power:1.1kw

Air compressor :22kw screw air compressor

air pressure:8kg/cm3

Dimension :1500*630*1370mm

Weight :240kg



Air compressor



22kw,match with garlic peeling machine

Dimension : 1100*800*1300mm

Weight :300kg

Air storage tank : 2070*830*920mm

Weight :180kg

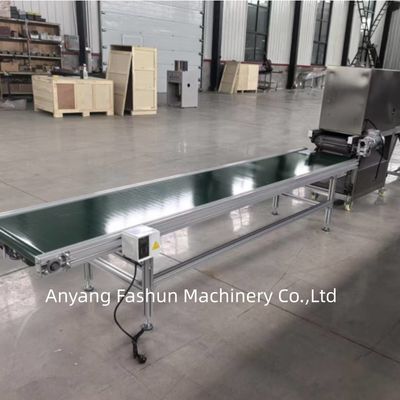

Garlic picking conveyor



The picking conveyor mainly used to pick up garlics that didn’t peeled, then can put into peeling machine and peel again.



Voltage:220v,50hz

Power:90w

Dimension:3000*585*600mm

Weight:90kg



Garlic Peeling Machines, Garlic Processing Machines, Small Garlic Peeling Line 200-300kg/H 1

Garlic Peeling Machines, Garlic Processing Machines, Small Garlic Peeling Line 200-300kg/H 2
