garlic drying machine , sliced garlic drying oven

Name: garlic drying machine , sliced garlic drying oven
Brand: fude
SKU: 10m,5 layers
Rating: 4.7 (119 reviews)

Large Image : garlic drying machine , sliced garlic drying oven Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	fude
Model Number:	10m,5 layers

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	non fumigation export standard wooden case
Delivery Time:	15-20days
Payment Terms:	TT,LC
Supply Ability:	100pcs/m

Contact Now

Detailed Product Description

Garlic Capacity:	200-250kg/h	Spinach Capacity:	100-150kg/h
Chili Capacity:	800-1000kg/h

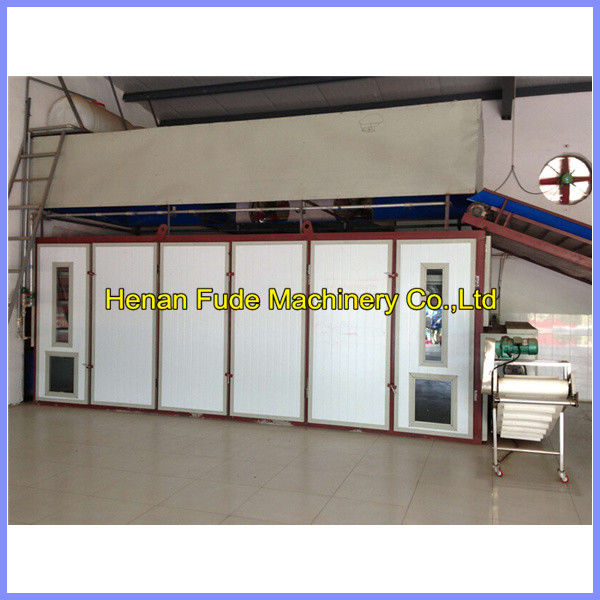

garlic drying machine , sliced garlic drying oven

garlic drying machine , sliced garlic drying oven 0

Garlic drying machine, also used as vegetables, medicines, fruits dewatering. After drying, garlic becomes white or light yellow, then can process into garlic powder or seasoning garlic powder.

The drying equipment space with 25-130m2 different models, can meet different material production .

Features :

1. The drying oven with automatic feeding and lifting function.

2. The drying oven use multi-layer movable stainless steel belt, make the material auto-turning.

3. Hot air through the belt and materials from bottom to top, hot air exchange evenly, fully, high efficiency, products with good quality, and good looks.

4. Drying oven designed with cooling and vibration discharge device, output material with low temperature, convenient for packing.

5. Drying oven with movable door, easy to clean.

6. Also with automatic discharge air cooling bagging device, save labor.

Specification :

Specification	Power	Coal consumption	Space	Garlic capacity	Spinach capacity	Chili capacity
10m,5 layers	40kw/h	180kg/h	16*2.4m	200-250kg/h	100-150kg/h	800-1000kg/h
9m,5 layers	37kw/h	120kg/h	15*2.4m	180-220kg/h	90-130kg/h	500-650kg/h
8m,5 layers	28kw/h	100kg/h	14*2.4m	120-200kg/h	50-100kg/h	450-600kg/h
