raisin washing drying line, raisin cleaning machine, raisin drying machine

raisin washing drying line, raisin cleaning machine, raisin drying machine
raisin washing drying line, raisin cleaning machine, raisin drying machine raisin washing drying line, raisin cleaning machine, raisin drying machine

Large Image :  raisin washing drying line, raisin cleaning machine, raisin drying machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: fude
Model Number: 5t/day
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $30000-$50000/set
Packaging Details: export standard wooden case, container
Delivery Time: 30-50days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 10sets/m
Contact Now
Detailed Product Description
Raisin Cleaning Machine: 14.8kw,380v,50hz Wind Blowing: 9kw, 380v, 50hz
Five-layer Drying Machine: 60kw, 380v, 50hz

                                                     Raisin cleaning drying processing line 5t/day

Process flow: bubble cleaning, spray cleaning----- wind blowing, draining water, lifting, feeding -----five-layer dryer----- storage

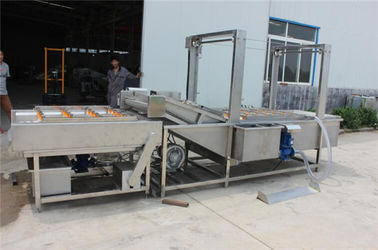

Bubble cleaning+spray cleaning

raisin washing drying line, raisin cleaning machine, raisin drying machine 0

Specification :

Model :RC6000

Power :14.8kw,380v,50hz

Dimension : 5500*1200*2200mm

Material : SUS304, thickness: 2mm.

Belt width: 1000mm

Air capacity : 600m3/h

Water can be recycled ,with filter.

Spray cleaning working size: 600*800mm

Material : SUS304



Wind blowing + lifting feeding

raisin washing drying line, raisin cleaning machine, raisin drying machine 1

specification:

Model : LS5000

Power : 9kw, 380v, 50hz

Dimension : 5000*1000*2500mm

Material : SUS304, thickness: 3mm.

Conveyor : PVC food grade

Fan : 3 pcs

Fan power : 0.55kw

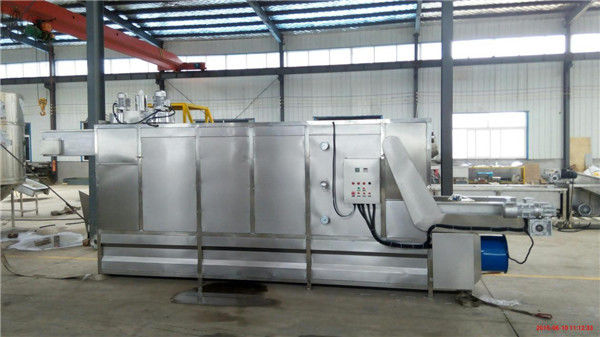

five-layer drying machine

raisin washing drying line, raisin cleaning machine, raisin drying machine 2

specification :

Model : DM7000

Power : 60kw, 380v, 50hz

Dimension : 7000*1500*2500mm

Belt width : 1000mm

Material : SUS304, thickness : 3mm

Heating : electricity

Drying capacity : 200kg/h

Drying temperature : 50℃-130℃

Dehumidification fan : 3pcs, 0.55kw*3



raisin washing drying line, raisin cleaning machine, raisin drying machine 3
