oat shelling machine, oat huller machine, oat sheller
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Carbon Steel | Process: | Oat, Remove Oat Outer Shell |
|---|---|---|---|
| Voltage: | 380v,50hz,three Phase | Capacity: | 600-800kg/h |
| Shipping: | EXW,FOB,CNF,CIF | Warranty: | One Year |
oat shelling machine, oat huller machine, oat sheller

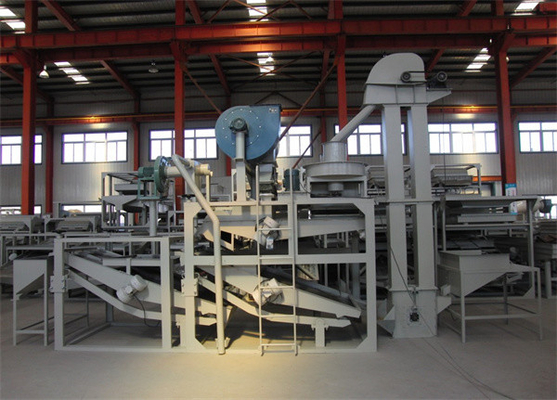

The oat hulling machine consists of input hopper, bucket elevator , dehullers ,shells-discharging device , separating screen , reseparator , kernels collector , pneumatic device for back-flowing materials, electric control cabinet .
Dehullers adopt all-steel main parts, the impeller adopts 99% alumina porcelain improves the dehulling result and gives longer service time. External motor is easy for maintenance and replacement.
You can achieve ideal separating result by adjusting angle of screens.
Adopt spiral shells-discharger to make the oats shells collecting works easier and meanwhile reduce the dust accumulation greatly during process.
Vibration source of the equipment adopts vibratory motors design, features easy and quick installation, no foundation works requires.
Specification :
| Model | FDOS-0.6 |
| Power | 12.25kw |
| Unhulled | 2-3% |
| Broke rate | ＜3% |
| Capacity | 600-800kg/h |
| Machine space | 7500*2800*4300mm |
| Weight | 2.8t |
