30t/day maize grits processing line, maize grits flour milling machines

Large Image : 30t/day maize grits processing line, maize grits flour milling machines Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	AFS
Certification:	CE
Model Number:	30t/day

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$30000/pc
Packaging Details:	non fumigation export standard wooden case
Delivery Time:	35days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100pcs/m

Contact Now

Detailed Product Description

Final Product:	Corn Grits, Corn Flour	Power:	170kw
Engineer Support:	Yes	Capacity:	30t/24hs
Shipping:	EXW,FOB,CNF,CIF	Warranty:	One Year

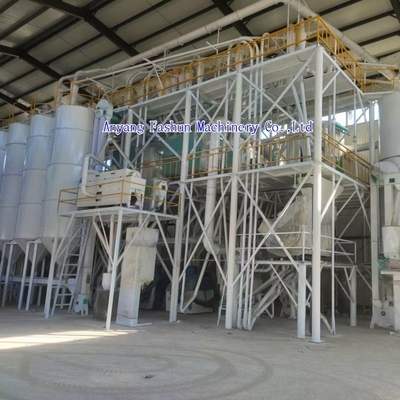

30t/day corn grits processing line, corn grits flour milling machines

30t/day maize grits processing line, maize grits flour milling machines 0

30T/day corn processing line, finally mainly make different size corn grits, and corn flour.

Specification:

No.	Equipment	Model	Qty	Power	Total power
A: corn cleaning system
1	Bucket elevator	TDTG20/11	1pc	1.1	1.1kw
2	Magnetic separator	TCX220	1set
3	Vibration screen	TQLG80*125	1pc	0.25*2	0.5kw
4	Vertical suction duct		1 set
5	Destoner	TQSF60	1pc	0.25*2	0.5kw
6	Low pressure fa	4-72-4.5#	1set	7.5kw
	Total			9.6kw
B: Peeling and polishing system
1	Bucket elevator	TDTG20/11	4pcs	1.1	4.4kw
2	Magnetic separator	TCX220	3set
3	Maize Peeling machine	NF180	2pcs	18.5+22	40.5kw
4	Maize polishing machine	SN200	1set	18.5+22	40.5kw
5	Air suction separator	TCFL50	1set
6	High efficiency vibrating granulator	TQLG60*125	1set	0.25*2	0.5kw
7	Low pressure fan	4-72-4	1set	4	4kw
	Total				89.9kw
C: grits and flour milling system
1	Bucket elevator	TDTG20/11	1pc	1.1	1.1kw
2	Temporary storage bin	2m³	1pc
3	Hammer mill	6FP-24	1pc	15	15
4	Flour brusher	SFJ40*80	2pcs	1.5	3kw
5	Flour mill	6F2240	2pcs	7.5*2	15kw
6	Double bin plansifter	FSFJ21083	1set	1.5*2	3kw
7	Screw conveyor	TLSS200	2pcs	1.5*2	3kw
8	High pressure fan	6-30A-15	1set	15	15kw
9	New suspension screen	TCFL100	1set	0.25*2	0.5kw
10	Air suction separator	TCFL50	1set
11	Corn grits polishing machine	FP40*60	1pc	4	4kw
12	air-lock valve	TGFY225	16 sets
13	driving parts		2 sets
14	Low pressure fan	4-72-4	1set	5.5	5.5kw
15	wind pipe net		1 set
16	Power control cabinet		1 set
17	Secondary starting cabinet		1sest
18	Packing machine	LCS-25A-DLZ	2sets	3	6kw
19	Packing box for skin	100	1 set
20	Packing box for flour	100	1set
	Total				71.1kw
D: other parts
1	Steel frame plate		1 set
2	Platform of support		1set
3	Banister and ladder		1set
4	Steel frame for air lock		1set
5	Machinery steel support		1set
6	Driving device		1set
7	Flange		1set
8	Cone belt and pipe strap		1set
9	Sieve fabric		1set
